How to Select and Wire a 220V Single-Phase to 380V Three-Phase VFD

How to run a 380V three-phase motor from 220V single-phase power—without confusing a standard drive with a true step-up VFD.

A 220V to 380V VFD is a specialized drive that accepts 220–240V single-phase input and supplies a 380–415V three-phase motor. It is not the same as a standard 220V VFD. Most ordinary drives produce an output voltage roughly limited to their supply voltage; a true step-up model needs an internal voltage-boost stage or an equivalent engineered design.

Key check: The nameplate or datasheet of VFD must explicitly state both “single-phase 220/230/240V input” and “three-phase 380/400/415V output.” A 380V output setting in the menu is not proof that the hardware can generate 380V.

First, Read the Motor Nameplate

The motor nameplate often determines whether a step-up drive is necessary:

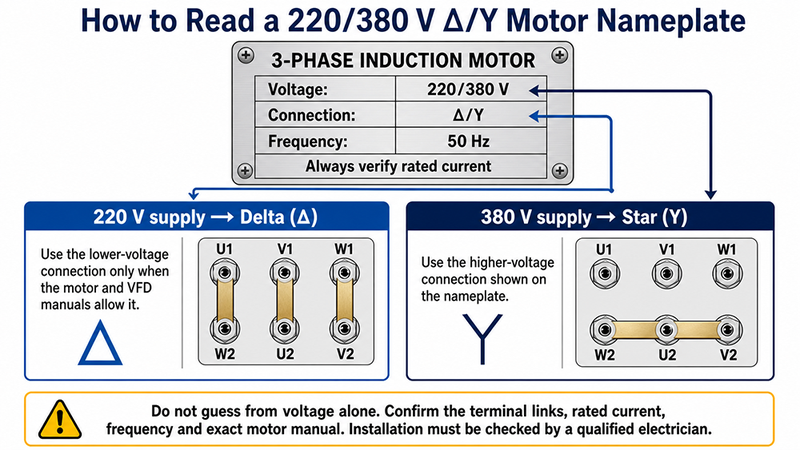

• 220/380V Δ/Y motor: The motor may usually run from a conventional 220V single-phase-input, 220V three-phase-output VFD when the windings are connected in delta (Δ). Have a qualified electrician confirm the link arrangement and current rating.

• 380V-only or 380/660V Δ/Y motor: Use a drive specifically rated for 380/400V three-phase output, or an engineered transformer-plus-VFD solution.

• Unknown or non-standard motor: Confirm voltage, rated current, frequency, speed, insulation and motor type before buying a drive.

How a Step-Up VFD Works

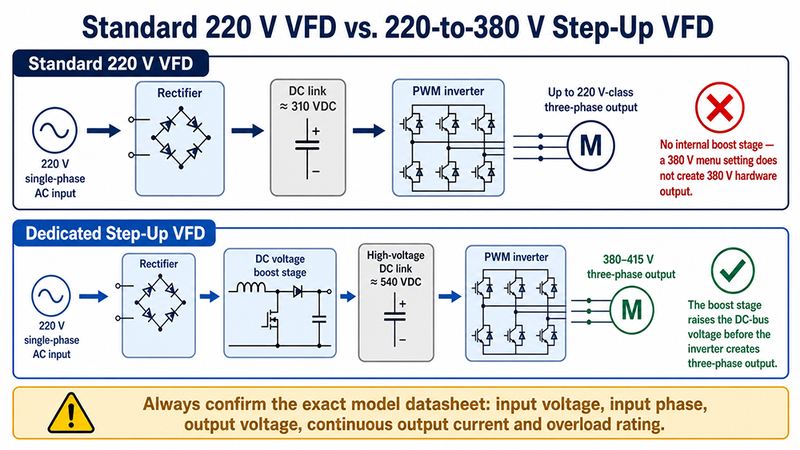

A dedicated unit rectifies the 220V AC input to DC, raises the DC-link voltage with a boost circuit, and then uses an inverter stage to create variable-frequency three-phase output. PWM controls the motor waveform, but PWM alone does not turn an ordinary 220V drive into a 380V drive.

How to Size a 220V to 380V VFD

1. Match voltage and phase. Confirm the input range, single-phase rating, and 380/400/415V three-phase output on the exact model—not just the product family.

2. Size by motor current. The drive’s continuous output current must meet or exceed the motor nameplate current for the intended connection. Do not choose by kW or HP alone.

3. Check the input circuit. Single-phase input current can be much higher than the motor’s three-phase output current. Verify the required breaker, isolator, cable size and available supply capacity from the drive manual and local code.

4. Allow for the load. Fans and centrifugal pumps are usually easier than compressors, crushers, hoists or high-inertia machines. For heavy starting or rapid braking, use the manufacturer’s heavy-duty rating and overload data.

5. Check the installation limits. Review ambient temperature, altitude derating, enclosure rating, EMC requirements, motor-cable length, braking-resistor support and control interfaces.

Wiring and Commissioning Essentials

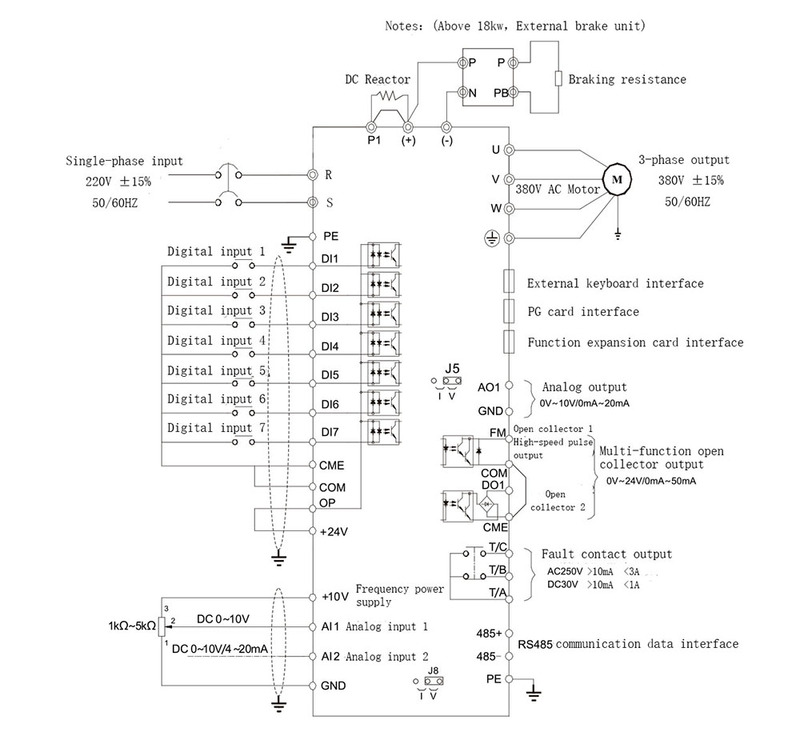

Terminal names vary. The input may be marked L/N, L1/L2 or R/S, while the motor output is commonly U/V/W. Use the diagram for the exact model.

• Connect the supply only to the designated input terminals and protective earth (PE).

• Connect U/V/W to the motor and bond the motor frame to PE.

• Install upstream protection, isolation and cable sizes specified by the manufacturer and local electrical rules.

• Enter the motor’s rated voltage, current, frequency and speed before the first run; use autotune only as instructed.

• Test direction at low speed. If direction must be changed, isolate power, wait for the DC bus to discharge, then swap any two motor leads.

Safety: Never connect mains power to U/V/W, never work on the drive before its stated discharge time has elapsed, and do not switch a contactor between the VFD and motor while the drive is running. Installation should be completed or checked by a qualified electrician.

Typical Applications

A correctly selected step-up VFD can be useful for pumps, fans, conveyors, lathes, mills and other single-motor machines where only 220–240V single-phase power is available. Compressors, hoists and other high-torque or regenerative loads need closer engineering review.

Frequently Asked Questions

Can any 220V VFD output 380V?

No. A standard 220V drive normally outputs about the same voltage class as its supply. Choose a model explicitly designed for 220V input and 380V output.

Can I run a 220/380V motor without a step-up VFD?

Often yes. If the nameplate permits 220V delta operation, a standard 220V-class VFD may be the simpler option. Confirm the winding links and current with the motor and drive manuals.

Should I choose a VFD or a phase converter?

A VFD is usually best for one motor when speed control, soft starting and programmable protection are needed. A properly engineered phase-converter system may suit several fixed-speed machines. Compare the complete system, not only the purchase price.

Does the input always use live and neutral?

No. Terminal arrangements and supply systems differ by model and country. Follow the manufacturer’s wiring diagram and local code; never infer the terminals from a generic online diagram.

Bottom Line

Before ordering a 220V to 380V VFD, check whether the motor can instead run at 220V delta. If it truly requires 380V, select a dedicated step-up drive by exact input/output voltage, continuous output current, overload class and supply-circuit requirements. The product manual—not a generic wiring graphic—should govern installation and commissioning.
