KD5800-ST Series Single Phase 220V to 3-Phase 380V VFD
In general, most AC motors are three-phase 380V and cannot operate without three-phase power.
You can only find a way to convert single phase 220V to three phase 380V. However, many equipment on the market with single-phase 220V input, three-phase 380V output are very expensive, so that many users in need take a step back.
KARDA 1-phase 220V to 3-phase 380V VFD (frequency inverter) is a perfect solution to solve this problem. Running a 3-phase 380V AC motor on a 220V single phase voltage for speed control is easy to be done, especially in some areas where there is no 380V power supply.
KARDA customized VFDs feature with 1hp to 30hp power rating, built-in RS485 communication interface, IP20 for body, V/F control mode.
Buy a best 220v-240v single phase input, 380v/ 400v/ 415v three phase output variable frequency drive at lower price now!
✍KD5800-ST series single-phase 220V input three-phase 380V output Special Inverter is suitable for the occasions where there is no three-phase 380V electricity, without changing the motor connection, by driving the three-phase 380V asynchronous motor directly from the civil 220V electricity.
✍This series of inverter not only has strong carrying capacity, but also can play the function of soft start and adjust the speed of three-phase asynchronous motor.
✍Note: When selecting the model, the POWER of the inverter should be doubled than the motor. Please consult customer service for details.
KD5800-ST Series Model Selection Table:
| VFD Model | Input
Volt(V) | Output
Volt(V) | Power
(KW) | Adapted motor (KW) | Product size
(W/D/H) | Install size
(W/D/H) | G.W
(KG) | Input cable (mm²) |
| KD5800-3R7-ST | Single Phase
220v±15% | Three Phase
380V±15% | 3.7kw | 2.2kw | 248*161*185mm | 148*234mm/Φ5 | 5kg | 2.5mm² |
| KD5800-5R5-ST | 5.5kw | 3kw | 248*161*185mm | 148*234mm/Φ5 | 5kg | 4mm² |
| KD5800-7R5-ST | 7.5kw | 4kw | 248*161*185mm | 148*234mm/Φ5 | 5kg | 4mm² |
| KD5800-011-ST | 11kw | 5.5kw | 322*208*192mm | 190*305mm/Φ6 | 9kg | 6mm² |
| KD5800-015-ST | 15kw | 7.5kw | 322*208*192mm | 190*305mm/Φ6 | 9kg | 6mm² |

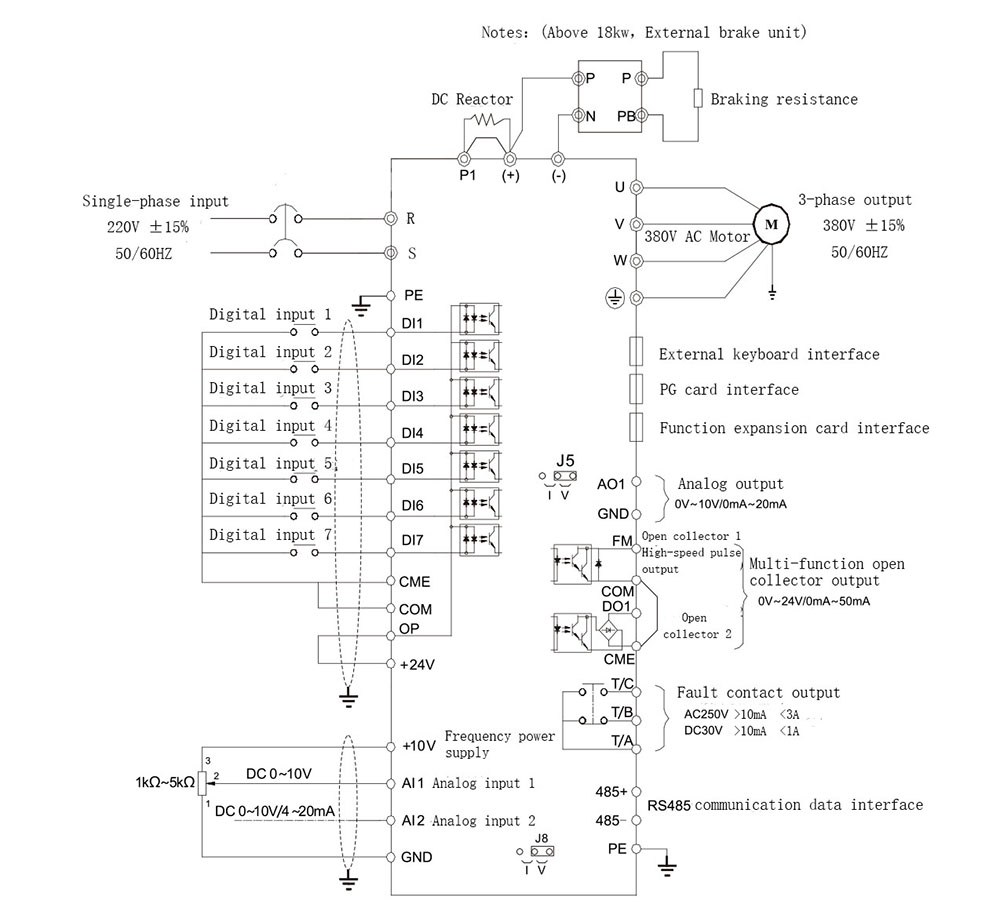

KD5800-ST Series Wiring Diagram

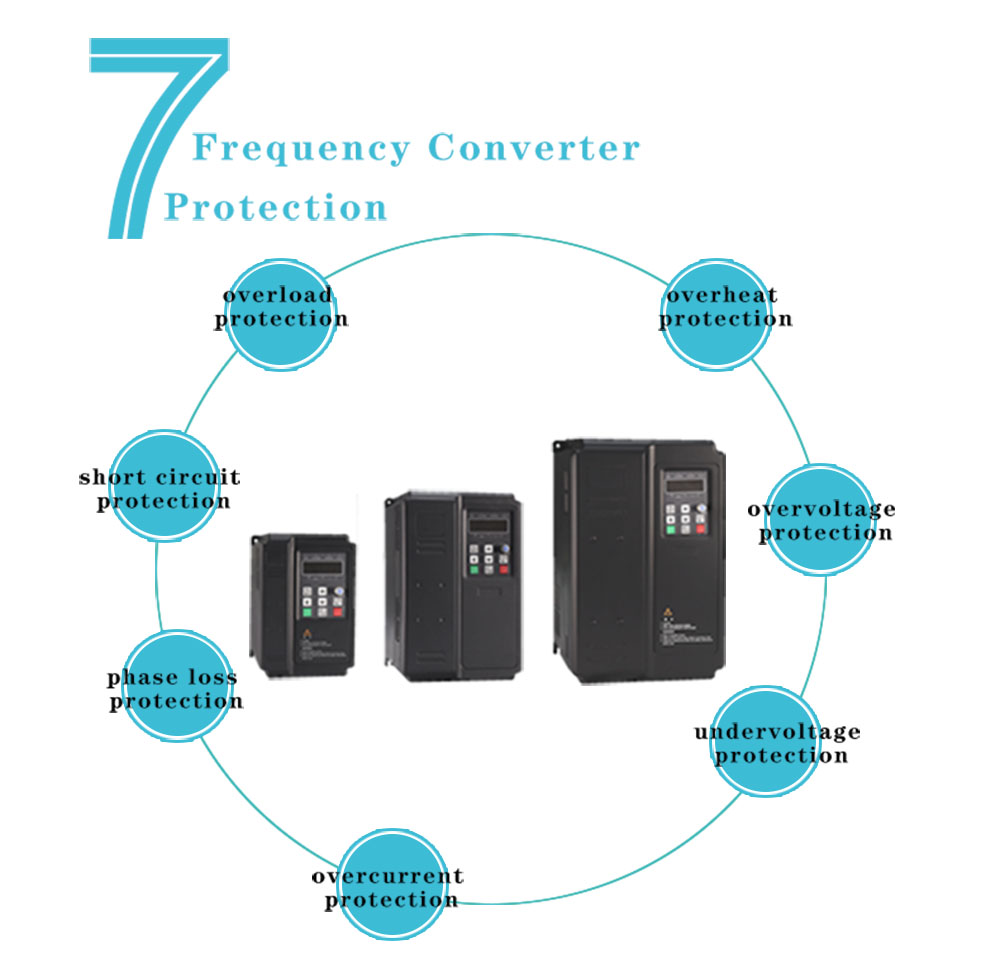

KD5800 Series inverter introduction
✍KD5800 series inverter is a high-performance vector inverter drives three-phase asynchronous motors;
✍This series of inverters supports a variety of advanced motor control methods:
►1: Sensorless vector control (SVC)
►2: Vector control with speed sensor (FVC)
►3: V/F control;
✍Performance highlights low-speed and high-torque output, with good dynamic characteristics, super overload capacity, stable performance, etc.;
✍The CPU adopts DSP high-speed digital processor, and adopts international brand power devices to make it highly reliable.
✍The advanced and complete software control algorithm has created the high quality.
KD5800 Series basic technical parameters:
✍Maximum frequency:
►Vector control: 0-500.0HZ
►V/F control: 0-1000.0Hz
✍Carrier frequency: 0.5KHz-16KHz
The carrier frequency can be automatically adjusted according to temperature Output frequency resolution: 0.01Hz
✍Control method:
►Open loop vector control (SVC)
►Closed loop vector control (FVC)
►V/F control
✍Starting torque:
►0.5Hz 150% (SVC)
►0Hz 180% (FVC)
✍Speed stabilization accuracy:
►±0.5% (SVC)
►±0.2% (FVC)
✍Overload capacity:
►G type machine 150% rated current 60S;
►P type machine 120% rated current 60S.
✍Torque boost:
►Automatic torque boost,
►Manual torque boost 0.1%-30%
✍V/F curve: 3 ways:
►Linear type,
►Multi-point type,
►N-th power type
V/F curve (1.2-th power 1.4-th power 1.6-th power 1.8-th power 2-th power)
✍V/F separation: 2 ways:
►Full separation,
►Half separation
✍Acceleration and deceleration curve:
Linear or S-curve acceleration and deceleration mode, 4 kinds of acceleration and deceleration time, the acceleration and deceleration time range is 0.0～6500.0S
✍DC braking:
►Braking frequency: 0.00Hz~maximum frequency,
►Braking time: 0.0~36.0S,
►Braking current: 0.0%~100.0%
✍Built-in PID:
It is convenient to realize the process closed-loop control system.
Simple PLC, multi-speed operation, up to 16-speed operation through the built-in PLC or external control terminal.
