KD5800-4TF Seres-380V Mini compact Economic AC Motor drives
✍KD5800F Based on the market demand
►Small power
►Small size
►Low cost
✍KD5800F is a single-phase 220 VAC and 3-phase 380 VAC Mini inverter with
►High power density
►High EMC specification design
►High protection performance
►By adopting V/F control method and vector control method (SVC) without speed sensor.
KD5800-4TF Seres-380V Model Selection Table:
Models
| Input Volt(v)
| Power(kw)
| Current(A) | Motor(kw) | Gross Weight |
| KD5800-4TR4F | 3- phase 380v±15% | 0.4kw | 1.5A | ≤0.4kw | 1.5kg |
| KD5800-4TR75F | 0.75kw | 2.7A | ≤0.75kw | 1.5kg |
| KD5800-4T1R5F | 1.5kw | 3.7A | ≤1.5kw | 1.5kg |
| KD5800-4T2R2F | 2.2kw | 5A | ≤2.2kw | 1.5kg |
✍Rich control methods
Except V/F control, it also supports vector control without speed sensor, V/F separation control, etc.
✍Multiple speed control modes
►Multi-segment speed is supported, and 4 input terminals of DI1-DI7 can be selected to form 16 speeds.
►Multiple speed control modes: analog input 0-5VDC, 0-10VDC, 0/4-20mA;
►Panel potentiometer speed regulation (change parameters to set up and down button speed regulation);
►The external potentiometer can be used for speed regulation through 485 communication.
✍Multiple startup modes can be set
►DI1 and DI2 multi-function input terminals can be set with multiple start and stop modes: two-wire A and B modes, three-wire A and B modes
✍Multiple startup control modes
Multiple start control modes:
►Panel control start and stop;
►External terminal controls start and stop;
►485 communication control start and stop;
►In combination with points 2 and 3, PLC can control the start and stop of the converter, control the speed of the converter, and read the operating frequency, bus voltage, output voltage, output current, output power, output torque, etc. of the converter in real time
✍Multi-function relay output
►Realize relay output in various states such as operation, frequency arrival, external abnormality, etc.

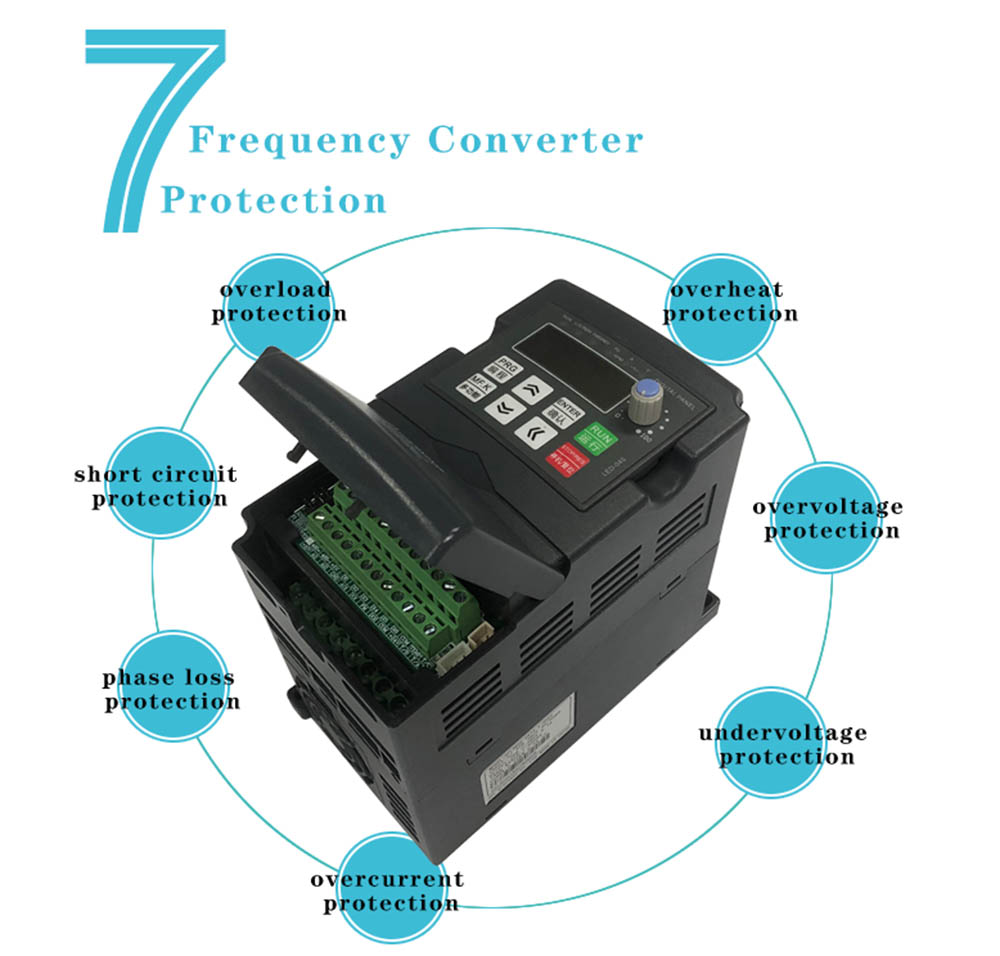

✍Multiple fault protection functions
►Up to 50 kinds of fault protection functions are provided.
►It can automatically stop the output quickly and reliably under various abnormal use conditions, thus protecting the motor or converter from possible damage caused by its own overcurrent.
►Different permanent magnet motor drivers can be customized and developed for special or special machines and equipment; Such as: special for constant pressure water supply, special for injection molding machine, etc.

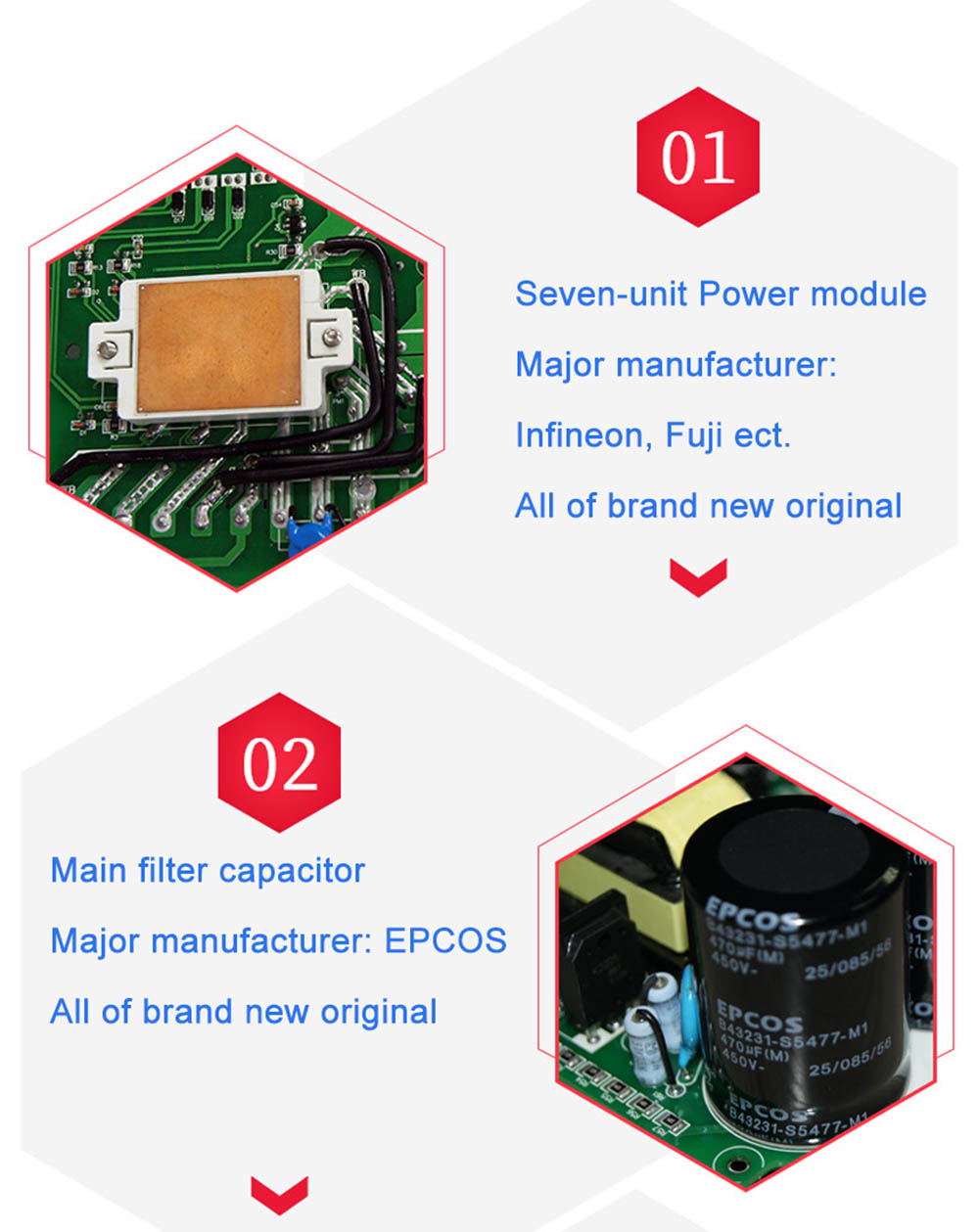

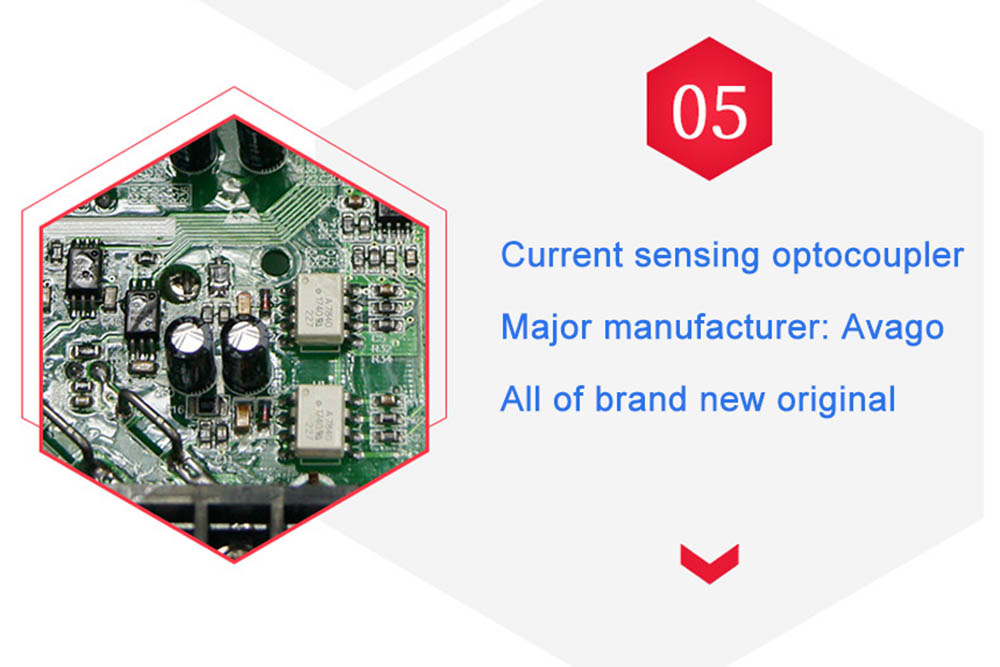

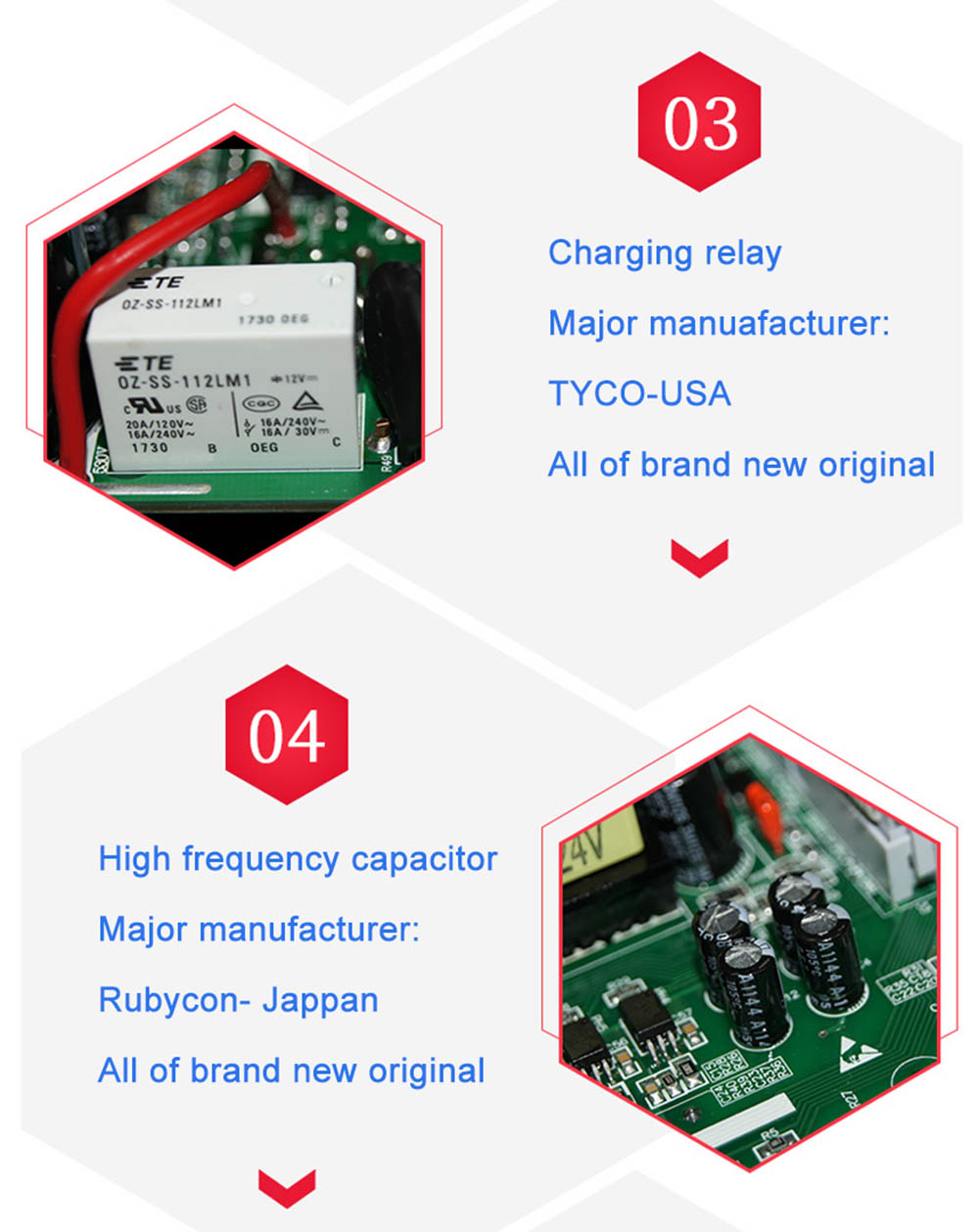

✍Most famous brands main components
