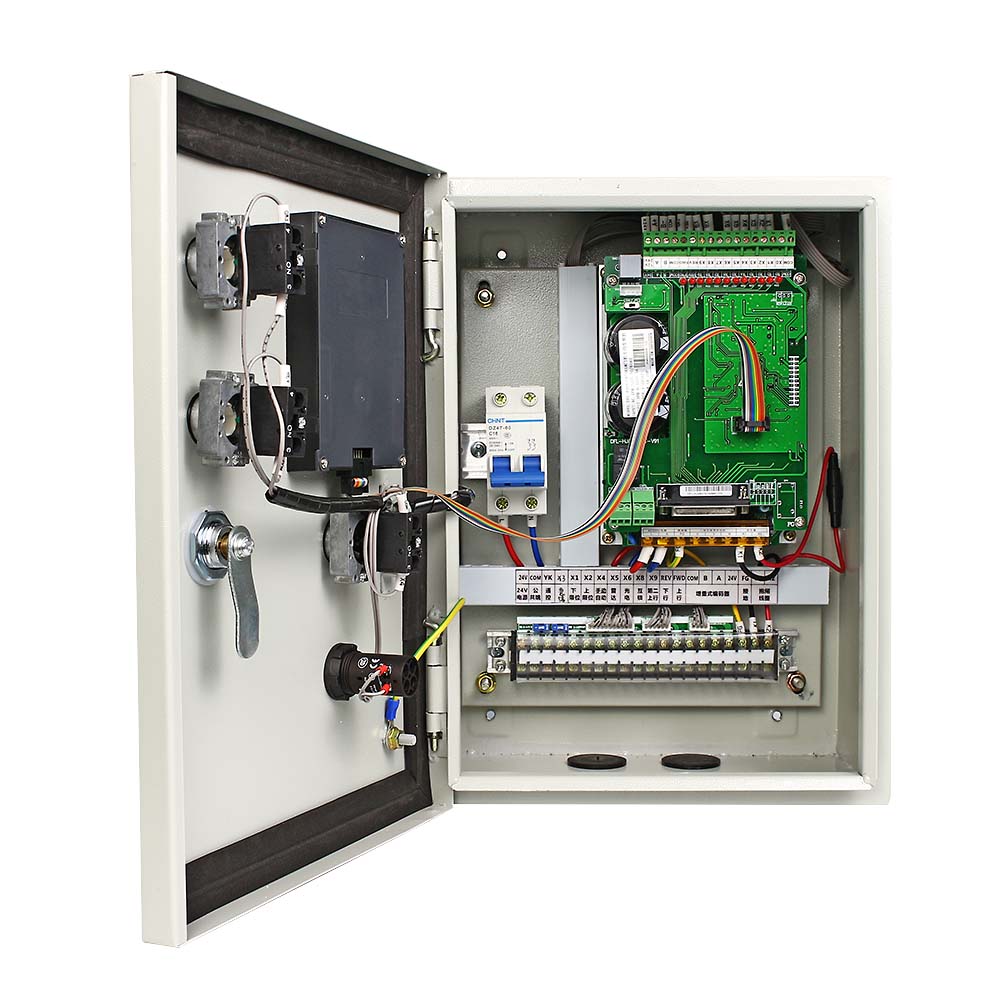

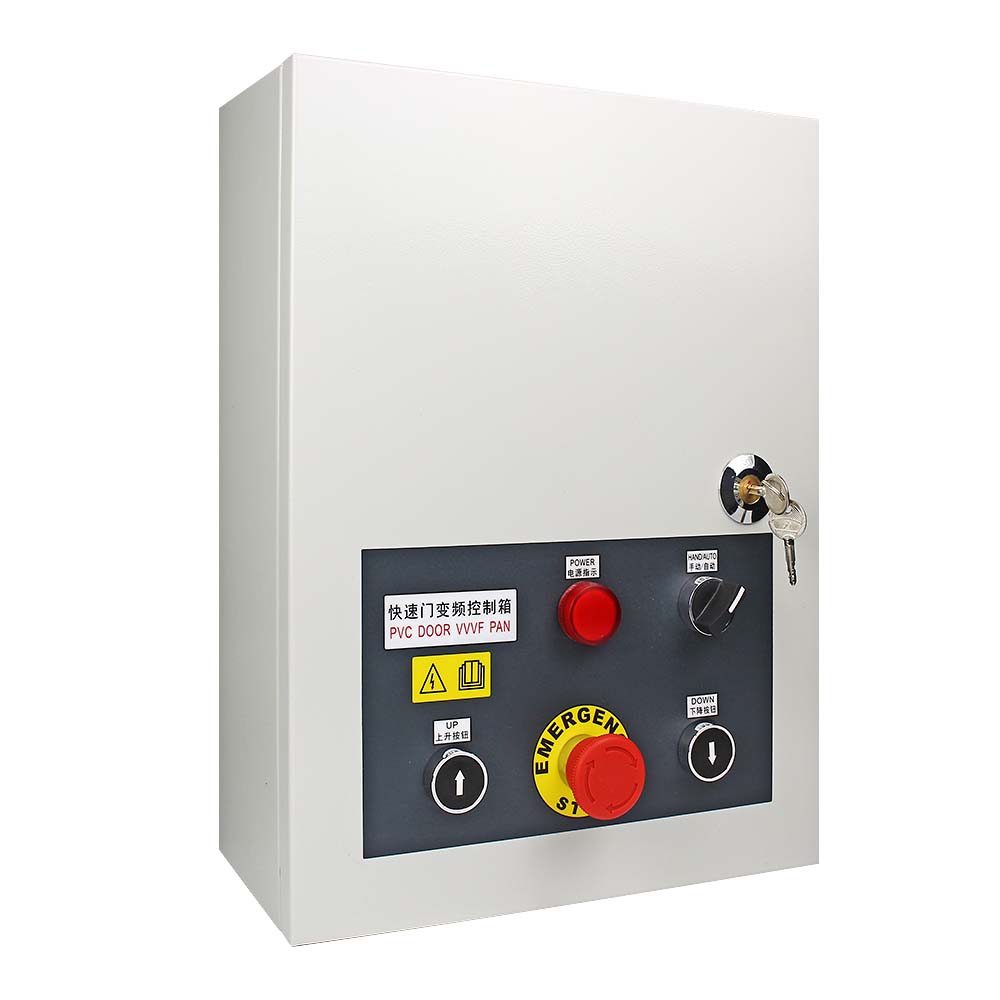

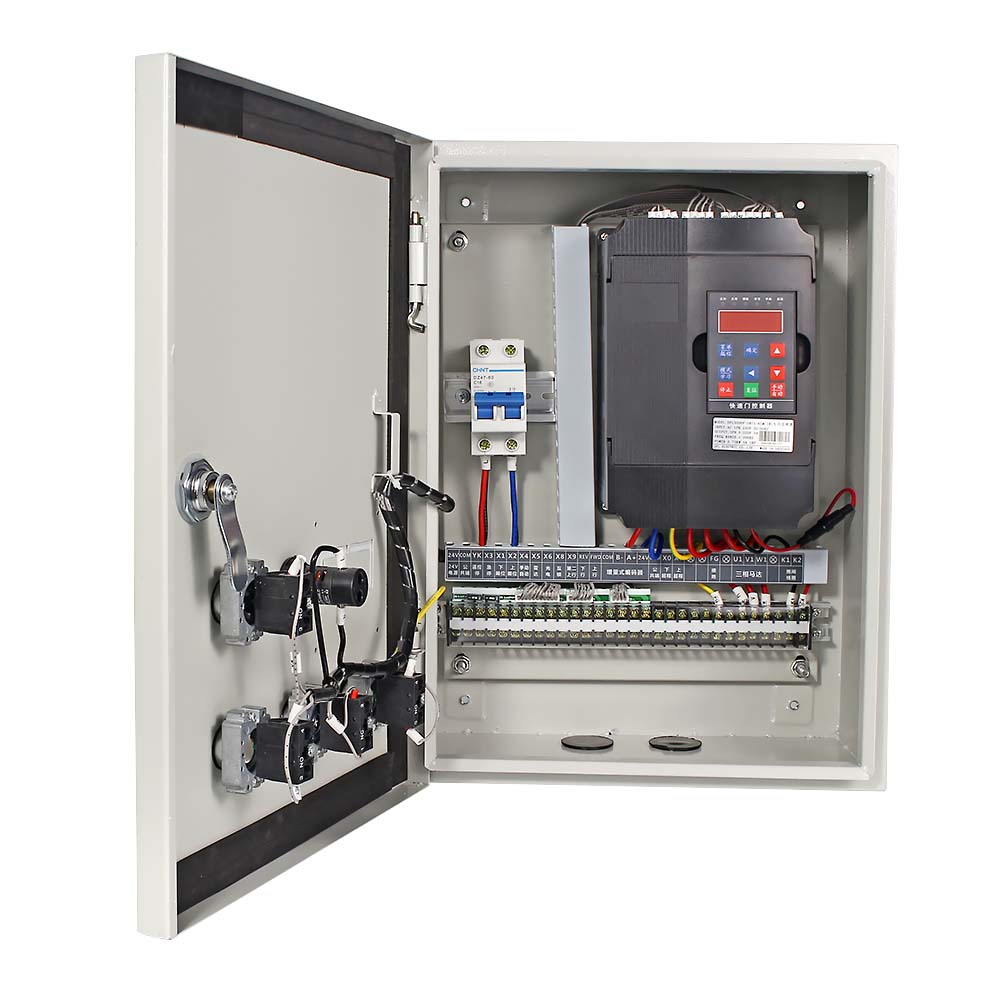

KD3000 Series for Auto doors / High speed door / Fast door Control systems
Technical characteristics
✍1. Input and output characteristics
►Input voltage range: 220V±20%, 380V±20%
►Output voltage range: 0 ~ Rated input voltage
►Output frequency range: 0~100HZ
✍2. External interface features
►16-way isolated external signal digital input: X0-X9, FWD, REV
►Incremental encoder interface: input AB pulse frequency up to 100KHZ

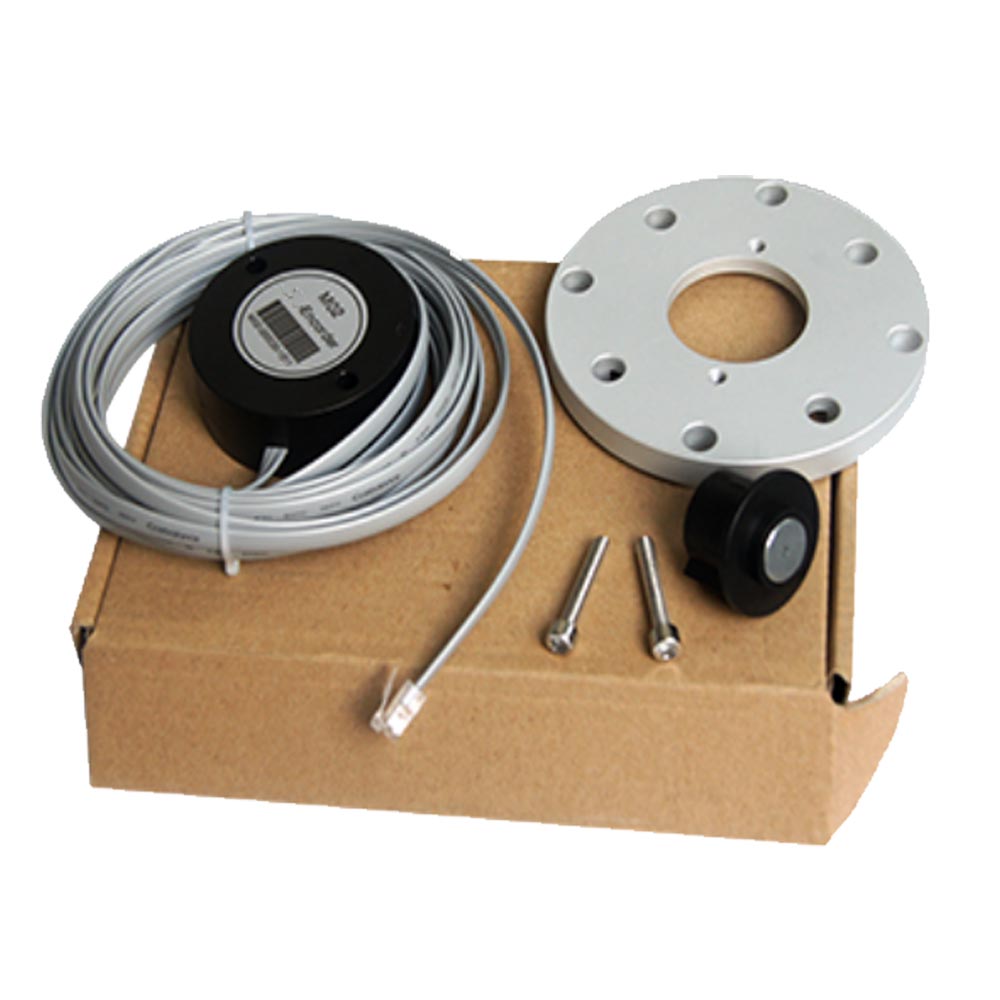

►Absolute encoder communication interface: 485 communication mode, baud rate 19200bps
►Relay output: 2 ways multi-function relay signal output
✍3. Technical performance characteristics
►Control mode: SVPWM
►Overload capacity: 150% of rated current 60s; 180% of rated current 10s
►Starting torque: 1.OHz/150%
►Carrier frequency: 1.0K ~ 10.0KHZ
►V/F curve: V/F curve can be set arbitrarily
►Acceleration and deceleration control: 16 stages of acceleration and deceleration time can be selected arbitrarily
✍4. Protection function features
►Automatic shutdown when the operation timeout
►Automatic shutdown when the encoder disconnection or damaged
►Automatic protection when the absolute encoder communication error or timeout
►Over-current, over-voltage, under-voltage, over-temperature, phase-loss, overload and other protection functions
✍5. Support inverter use time and the number of times to open the door automatic memory function

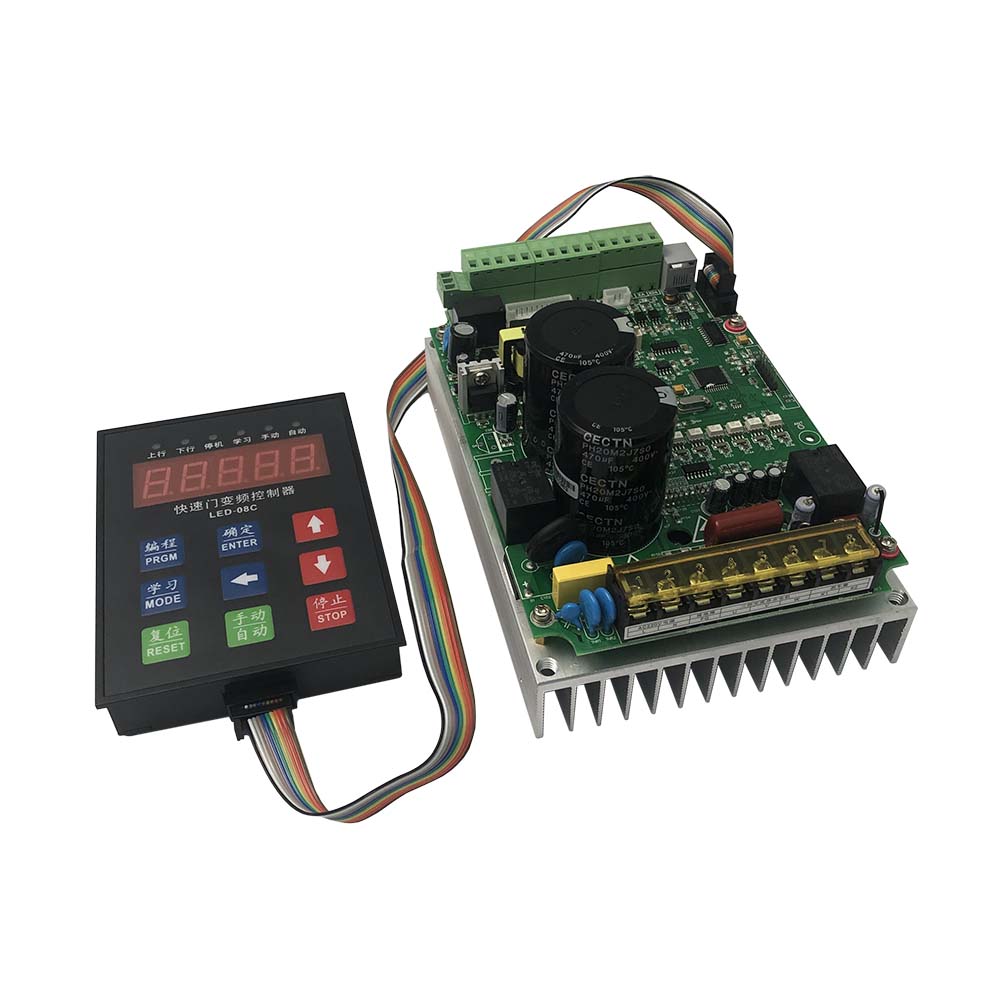

✍6. Support various languages LCD panel
Real-time display of door status
Real-time display of current operating frequency
