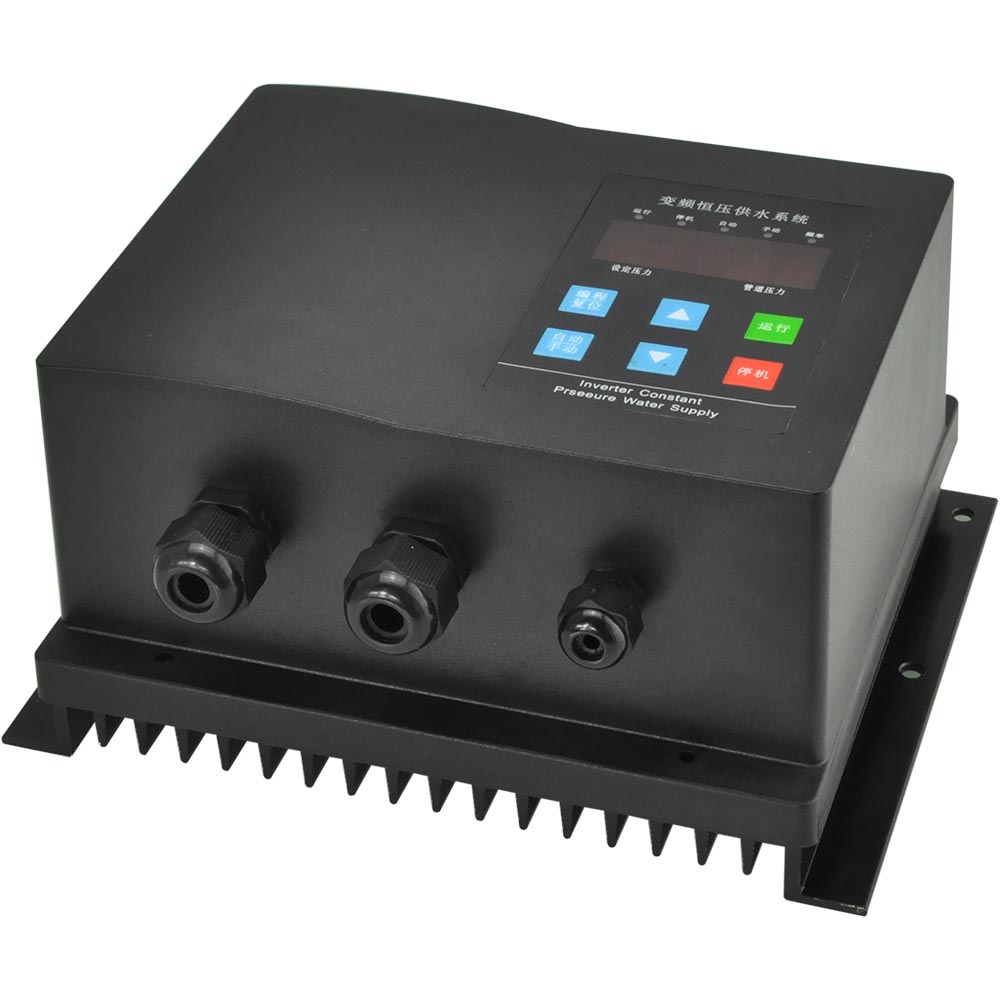

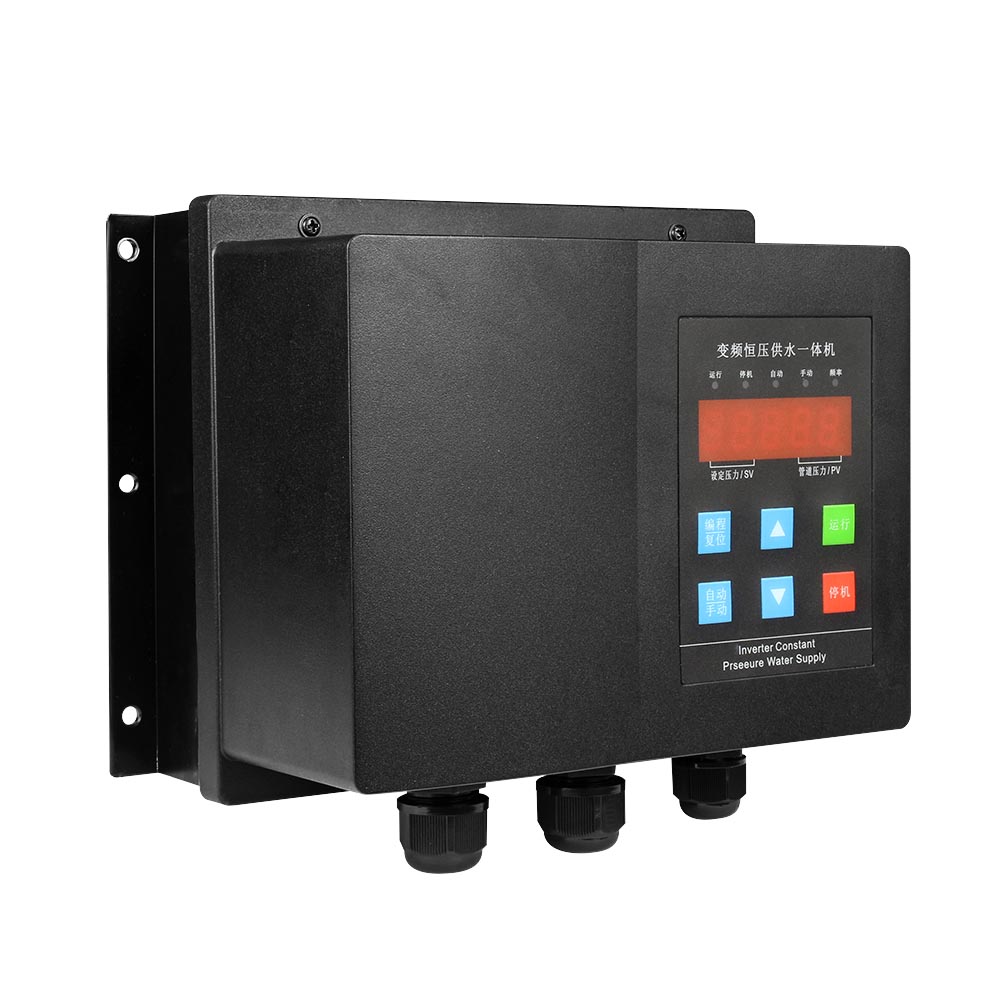

KD5800-CPWS Series Constant pressure water supply Inverter
KARDA KD5800-CPWS Series backpack-type constant voltage water supply inverter,
Suitable for:
✍380V, three-phase water pumps
✍220V, three-phase water pumps
✍220V single-phase water pumps
Note: (Only for the single-capacitor single-phase water pumps, no need to remove the capacitor, dual capacitors are not available).
KD5800-CPWS Series Feature
 | Name: KD5800-CPWS Series backpack constant voltage water supply inverter |
Rated Power: 0.75kw, 1.5kw, 2.2kw, 3.7kw (2S,4T series) |
Voltage Input: 220V Single phase input (2S), 380V 3-Phase input (4T) |
Voltage Output: 220V Single phase & 3-phase output (2S), 380V 3-Phase output (4T) |
Pressure range:0~9.9kg / 0~0.99Mpa |
Pressure gauge interface type: 0-5V Pointer remote sensor (<10m),4-20mA Sensor (<500m) |
Dimension: Installation dimensions: 198*133*Φ5mm Product dimensions: 160*211*123(107)mm |
✍1. Input power supply:
<a>.Input: single-phase 220V ±15%; Output: 3-phase / single-phase 0-220V
(for the single-capacitor single motors, no need to remove the capacitor);
<b>.Input: 3-phase 380V ±15%; Output :3-phase 0-380V
✍2. Special motor control IC, voltage vector control, pure SVPWM output;
✍3. The IPM module is the core component of the power drive and has built-in multiple reliable protections such as over current, short circuit, and over temperature;
✍4. Adjustment pressure range: 0-9.9 kg (0.99Mpa);
✍5. Adapt to a variety of pressure gauge interfaces, no external power supply required;
<a>. 0-5V pointer type remote transmission pressure gauge (transmission distance <10 meters);
< b>. 4-20mA digital display remote transmission pressure gauge (transmission distance <500 meters);
✍6. Comes with internal PID function, no need for external constant voltage controller;
✍7. The set pressure and actual feedback pressure are displayed in real time; the first two digital tubes are the set pressure, and the last two digital tubes are the actual pressure;
✍8. Complete protection functions: the inverter automatically shuts down when pipe burst/pressure is too low, ultra-high pressure, water shortage protection delays automatic restart, and automatically starts after a power outage without resetting parameters;
✍9. Parameter setting is convenient, simple and easy to understand. You can directly restore the factory default values and you can start working;
✍10. With plug gable port, easy to install and maintain;
✍11. Can be equipped with pointer type remote pressure gauge, the standard wiring length is 5 meters;
✍12. After the parameter setting is wrong, you can restore the factory parameters with one click.
✍13. The fastest way to adjust the target pressure: directly press the up and down keys to adjust, and press the save key to take effect.
KD5800-CPWS Series Model Selection Table:
KD5800-CPWS Series backpack constant voltage water supply inverter |
KD5800-2S-CPWS1 Series 220v single phase input, single phase output (For the single-phase single-capacitor water pumps) |
Products Model | Voltage ±15%(V) | Rated Power(kw) | Installation Size(mm) | Product Size(mm) | Adapted Pump(kw) |
KD5800-2S0R75-CPWS1 | 220V | 0.75kw | 198*133*Φ5 | 160*211*107 | 0.4kw |
KD5800-2S1R5-CPWS1 | 220V | 1.5kw | 198*133*Φ5 | 160*211*123 | 0.75kw |
KD5800-2S2R2-CPWS1 | 220V | 2.2kw | 198*133*Φ5 | 160*211*123 | 1.5kw |
KD5800-2S4R0-CPWS1 | 220V | 3.7kw | 198*133*Φ5 | 160*211*123 | 2.2kw |
Note:2S-CPWS1 series must increase the power a level.e.g.: 2.2kw CPWS1 series inverter should be adapted to the 1.5kw single-phase water pump, NO need to remove the pump’s capacitor.connect with the pump directly. |
|
KD5800-2S-CPWS Series 220v single phase input, 3-phase output (For the 3-phase 220V water pumps) |
KD5800-2S0R75-CPWS | 220V | 0.75kw | 198*133*Φ5 | 160*211*107 | 0.75kw |
KD5800-2S1R5-CPWS | 220V | 1.5kw | 198*133*Φ5 | 160*211*123 | 1.5kw |
KD5800-2S2R2-CPWS | 220V | 2.2kw | 198*133*Φ5 | 160*211*123 | 2.2kw |
KD5800-2S4R0-CPWS | 220V | 3.7kw | 198*133*Φ5 | 160*211*123 | 3.7kw |
|
KD5800-4T-CPWS Series 380v 3-phase Input & Output (For the 3-phase 380V water pumps) |
KD5800-4T0R75-CPWS | 380V | 0.75kw | 198*133*Φ5 | 160*211*107 | 0.75kw |
KD5800-4T1R5-CPWS | 380V | 1.5kw | 198*133*Φ5 | 160*211*123 | 1.5kw |
KD5800-4T2R2-CPWS | 380V | 2.2kw | 198*133*Φ5 | 160*211*123 | 2.2kw |
KD5800-4T4R0-CPWS | 380V | 3.7kw | 198*133*Φ5 | 160*211*123 | 3.7kw |

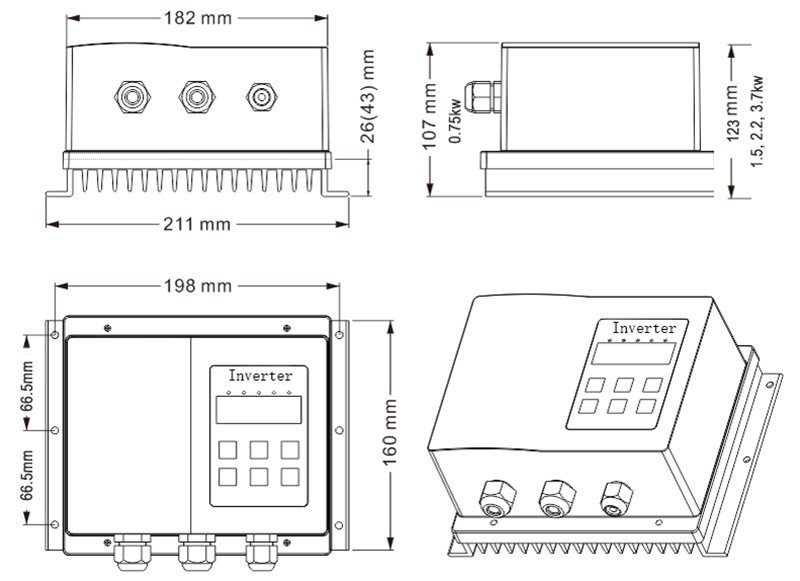

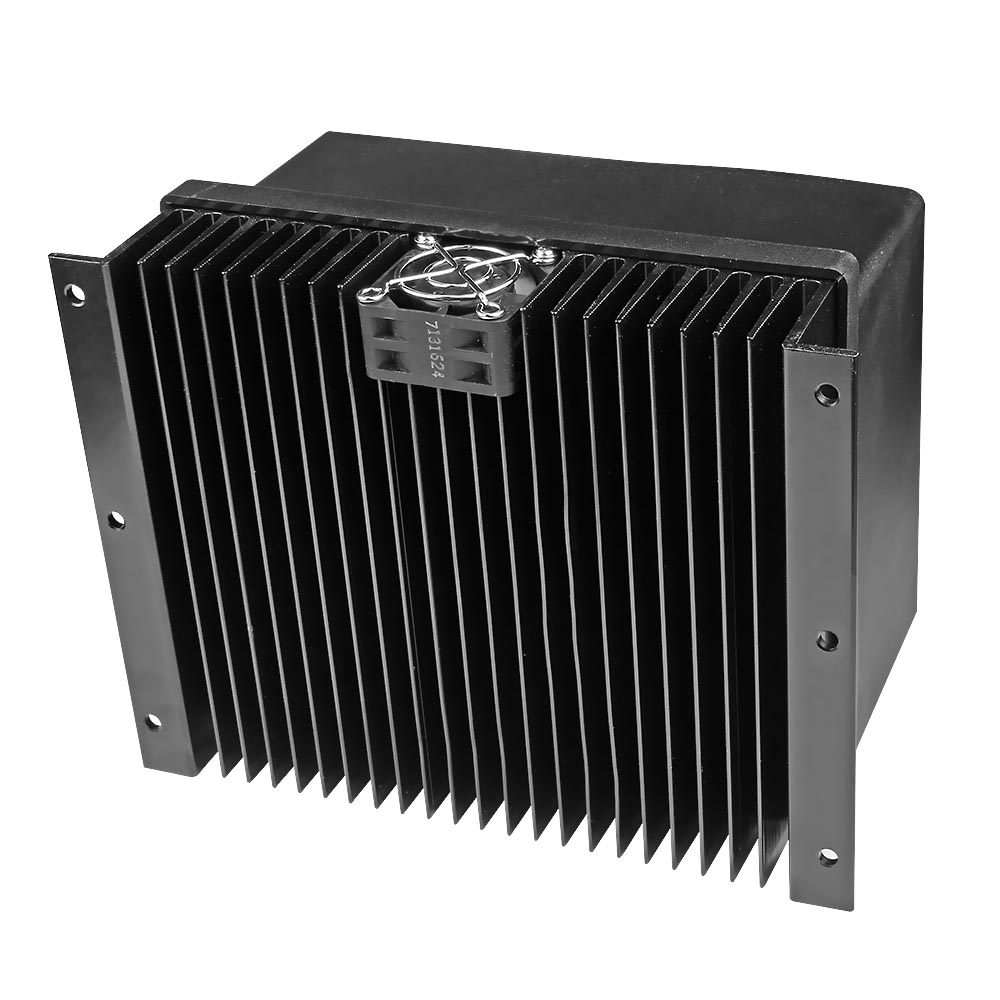

KD5800-CPWS Series Product Size & Installation Size
✍Installation dimensions: 198*133*Φ5mm
✍Product dimensions: 160*211*107mm for 0.75kw, 160*211*123mm for 1.5, 2.2, 3.7kw

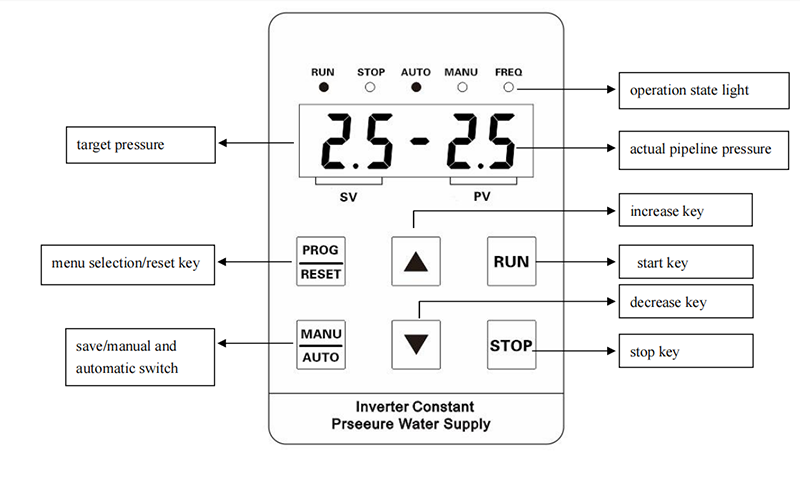

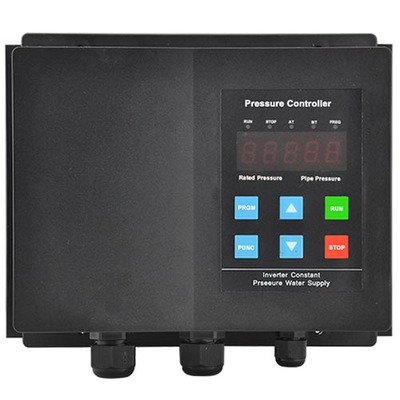

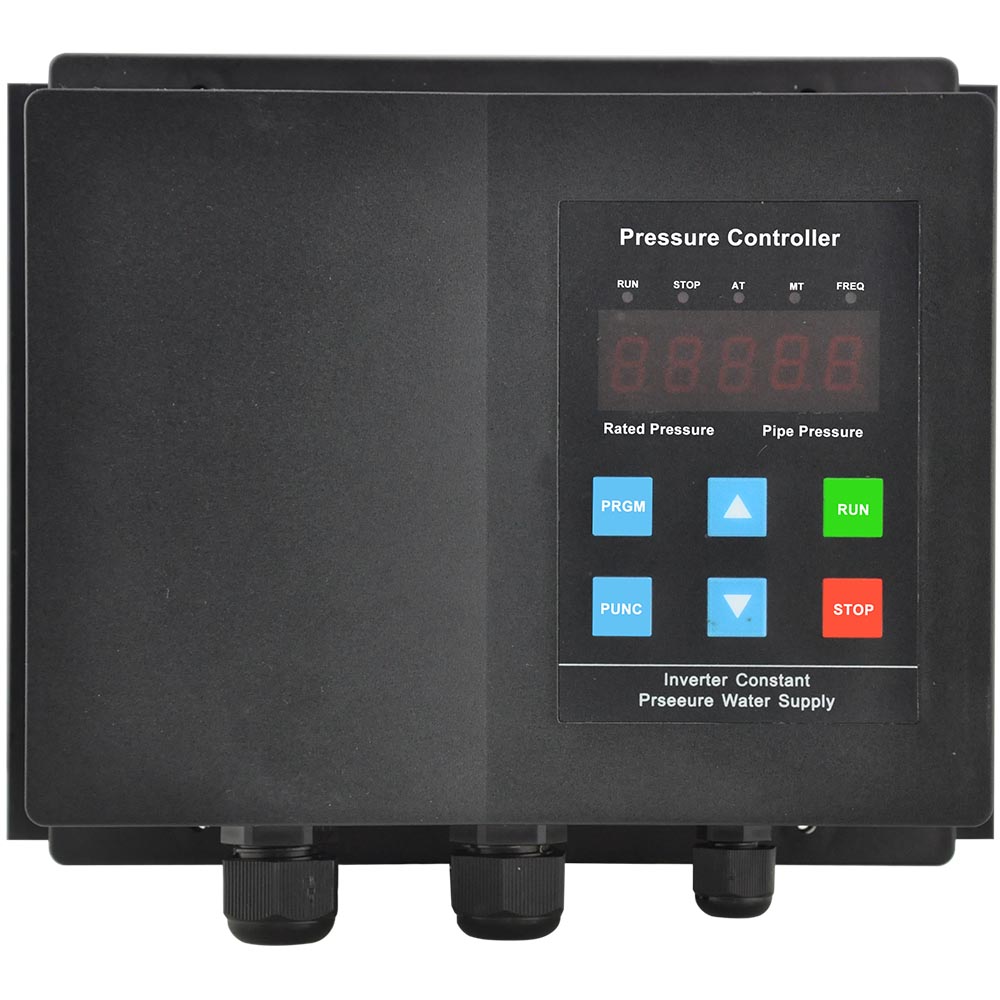

KD5800-CPWS Series Operation Panel Description

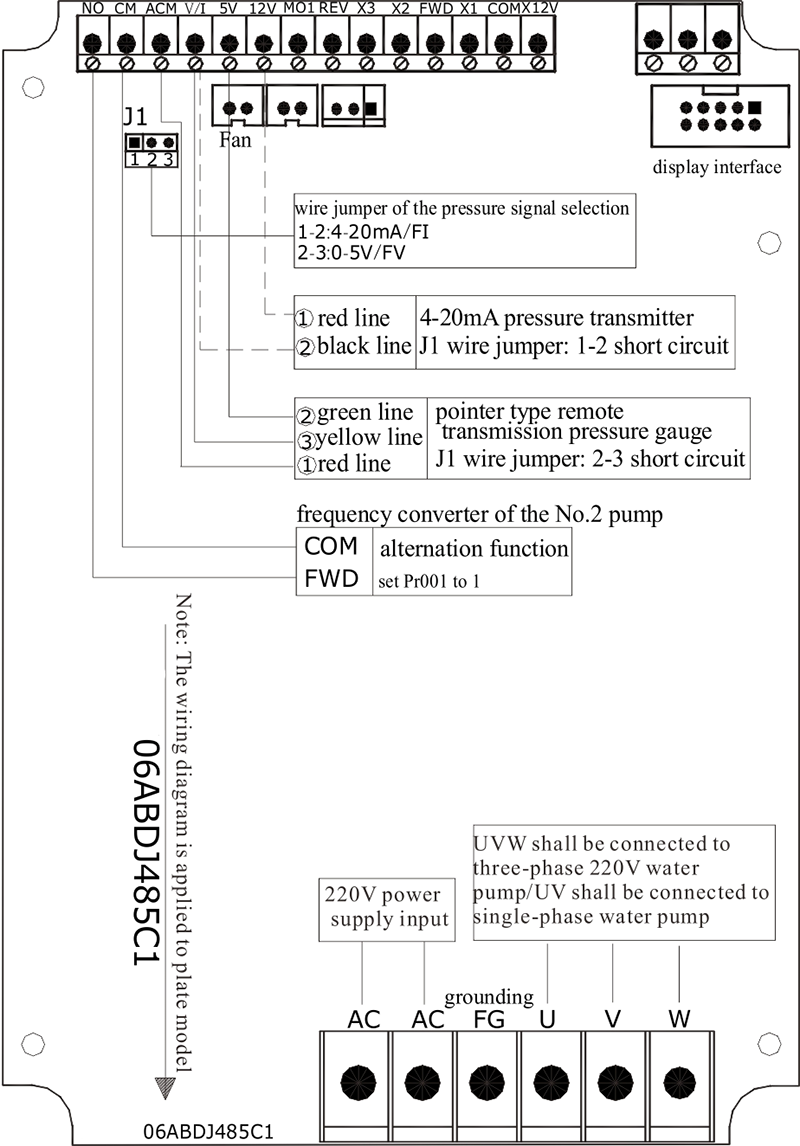

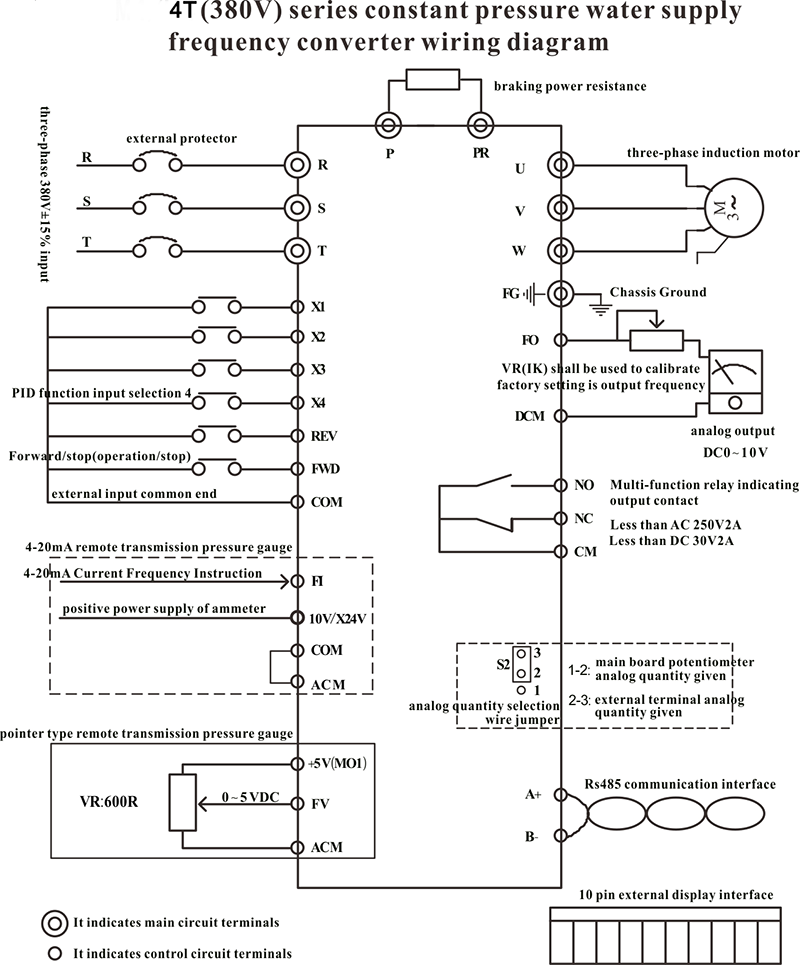

KD5800-CPWS Series Control circuit and terminal description
