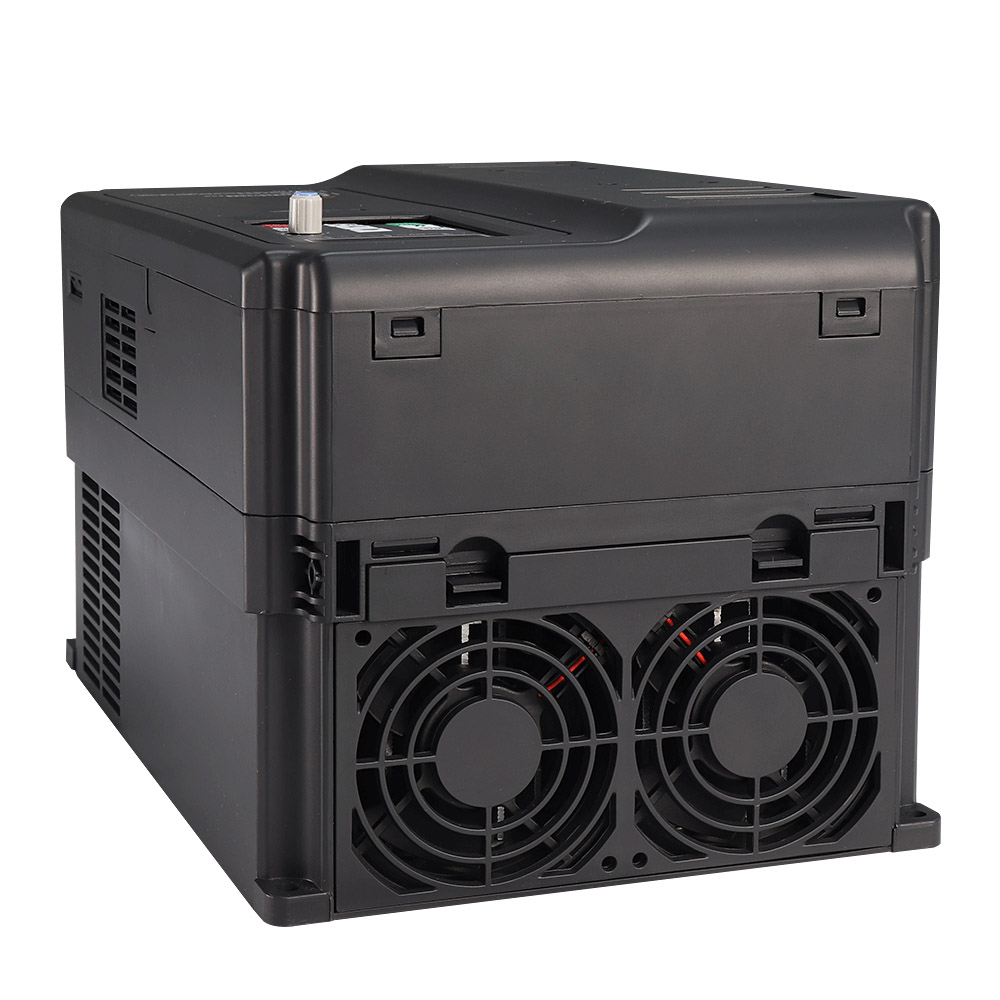

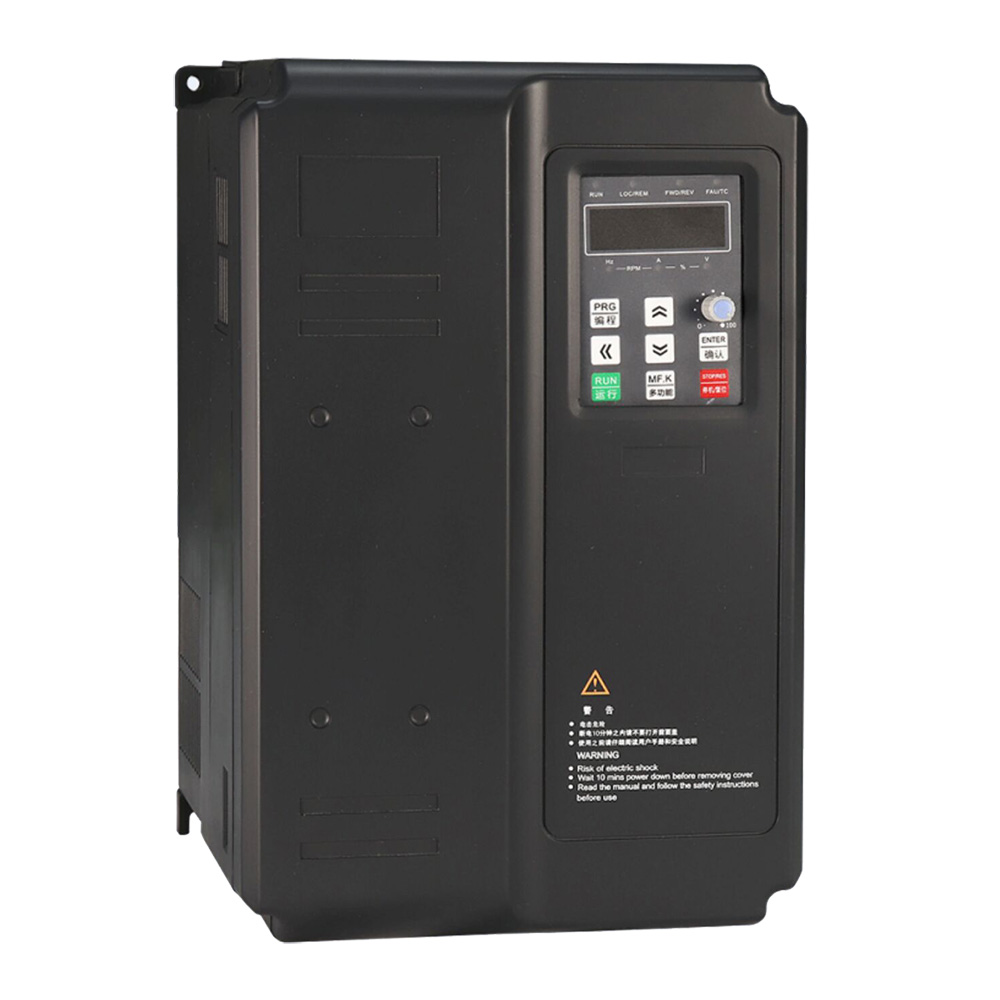

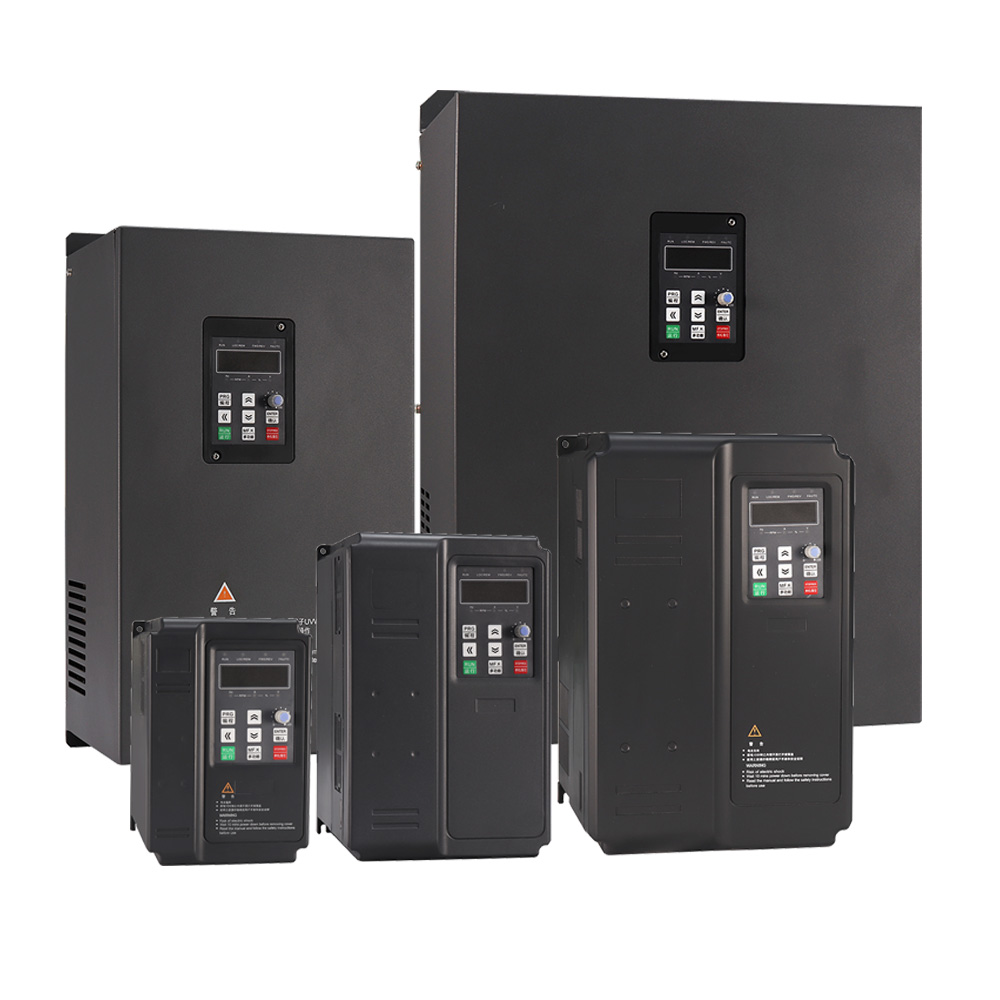

KD5800-4TG Series-380V High Performance Vector Inverter
✍KD5800 series inverter is a high-performance vector inverter drive three-phase asynchronous motors;
✍This series of inverters supports a variety of advanced motor control methods:
►1: Sensorless vector control (SVC)
►2: Vector control with speed sensor (FVC)
►3: V/F control; performance highlights low-speed and high-torque output, with good dynamic characteristics, super overload capacity, stable performance, etc.;
✍The CPU adopts DSP high-speed digital processor, and adopts international brand power devices to make it highly reliable.
✍The advanced and complete software control algorithm has created the domestic high quality.
KD5800-4TG Series-380V High Performance Model Selection Table:
| Models | Input Volt(v) | Power(kw) | Current(A) | Motor(kw) | Gross Weight |
| KD5800-4TR4G | Three phase 380v±15% | 0.4kw | 1.5A | ≤0.4kw | 2.5kg |
| KD5800-4TR75G | 0.75kw | 2.7A | ≤0.75kw | 2.5kg |
| KD5800-4T1R5G | 1.5kw | 3.7A | ≤1.5kw | 2.5kg |
| KD5800-4T2R2G | 2.2kw | 5A | ≤2.2kw | 2.5kg |
| KD5800-4T4R0G | 3.7kw | 9A
| ≤3.7kw | 4kg |
| KD5800-4T5R5G | 5.5kw | 13A | ≤5.5kw | 4kg |
| KD5800-4T7R5G | 7.5kw | 17A | ≤7.5kw | 4kg |
| KD5800-4T011G | 11kw | 25A
| ≤11kw | 8kg |
| KD5800-4T015G | 15kw | 32A | ≤15kw | 8kg |
| KD5800-4T018G | 18.5kw | 37A | ≤18.5kw | 19kg |
| KD5800-4T022G | 22kw | 45A | ≤22kw | 19kg |
| KD5800-4T030G | 30kw | 60A | ≤30kw | 19kg |
| KD5800-4T037G | 37kw | 75A | ≤37kw | 40kg
|
| KD5800-4T045G | 45kw | 90A | ≤45kw | 40kg |
| KD5800-4T055G | 55kw | 110A | ≤55kw | 40kg |
| KD5800-4T075G | 75kw | 150A | ≤75kw | 40kg |
✍Basic technical parameters:
Maximum frequency
►Vector control: 0-500.0HZ
►V/F control: 0-1000.0Hz
✍Carrier frequency: 0.5KHz-16KHz, the carrier frequency can be automatically adjusted according to temperature Output frequency resolution: 0.01Hz
✍Control method: open loop vector control (SVC) closed loop vector control (FVC) V/F control
✍Starting torque: G type machine 0.5Hz 150% (SVC) 0Hz 180% (FVC)
✍Speed stabilization accuracy: ±0.5% (SVC) ±0.2% (FVC)
✍Overload capacity: G type machine 150% rated current 60S; P type machine 120% rated current 60S
✍Torque boost: automatic torque boost, manual torque boost 0.1%-30%
✍V/F curve: three ways: linear type, multi-point type, N-th power type V/F curve
(1.2-th power 1.4-th power 1.6-th power 1.8-th power 2-th power)
✍V/F separation: 2 ways: full separation, half separation
✍Acceleration and deceleration curve: linear or S-curve acceleration and deceleration mode, four kinds of acceleration and deceleration time, the acceleration and deceleration time range is 0.0～6500.0S
✍DC braking:
►Braking frequency: 0.00Hz~maximum frequency,
►Braking time: 0.0~36.0S,
►Braking current: 0.0%~100.0%
✍Built-in PID: It is convenient to realize the process closed-loop control system. Simple PLC, multi-speed
operation, up to 16-speed operation through the built-in PLC or external control terminal.
